| Connection |
Other |
| Technics |
Forged |
| Type |
Elbow |
| Shape |
Equal |
| Head Code |
Hexagon |
| Place of Origin |
Shanghai China (Mainland) |
| Model Number |
PX-2004 |
| Brand Name |
None |

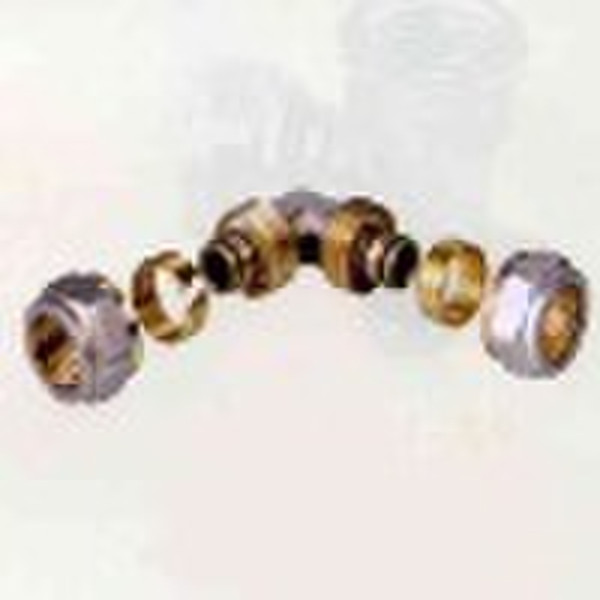

Elbow Size: 16X16,16X20,16X26,20X20,20X26,26X26,26X32 Parts and material: 1. Body: Brass natural by hot forging 2. O-ring: NBR 3. Washer: Brass natural 4. Lock ring: Brass natural 5. Nut: Brass natural by hot forging Technical standard: Working pressure: 1.6MPa Working temperature: -10°c 80°c Suitable medium: water&oil&gas Assembling instructions: 1. Cut the pipe perpendicutar to its using appropriate tools, remove any trimming carefully 2. Fit the nut on the pipe 3. Fit the lock ring on the pipe 4. Fit the brass was her on the pipe 5. Fit the O-ring on the pipe 6. Fit the pipe on the body up to the mechanical stop 7. Tightem the nut by hand till it is possible then using the tool tighten the nut
